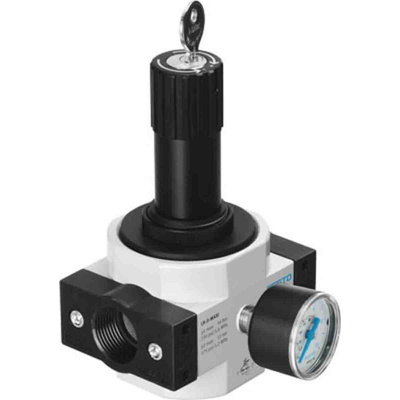

LRS-1/2-D-DI-MAXI, Festo G 1/2 Pneumatic Regulator - 0.5bar to 12bar, 1/2 in, 16bar max. input, 194670

Festo Pneumatic Regulator, 1 to 16 Bar Input Pressure Range, 5400L/min Flow Rate - LRS-1/2-D-DI-MAXI

This Festo pneumatic regulator gives you close control over the pressure in your air-powered system. By automatically cutting off airflow when your system's pressure reaches a set value, it stops your equipment from wasting air. As the device's regulating pressure is adjustable between 0.5 and 12 bar, it's suitable for maintaining pressure across pneumatic applications with different demands. The rotary knob actuator locks with a removable key to give you tamper-proof pressure control. Thanks to its die-cast zinc housing, the regulator resists corrosion and delivers reliable pressure management in damp conditions.

Features & Benefits

• Achieves flow rates of up to 5400L/min for efficient pneumatic performance
• Supplied with a front-mounted pressure gauge for convenient monitoring
• Works with compressed and lubricated air for versatility
• Airtight NBR seals prevent leaks to maintain stable system pressure
• Wide operating temperature range between -10°C and +60°C for use in harsh settings

Applications

• Industrial furnaces
• Food production
• Metalworking

How do I adjust this pressure regulator?

You can simply set the unit to your preferred pressure by twisting the top-mounted rotary knob.

Datasheet - LRS-1/2-D-DI-MAXI

Catalogue - Pressure Regulators
