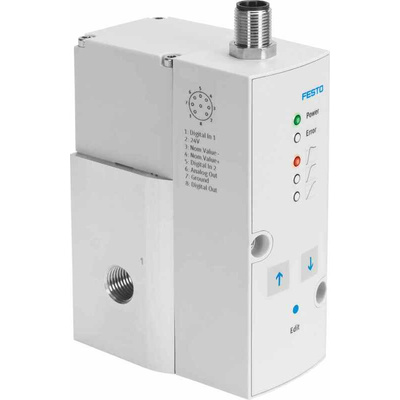

VPPM-8L-L-1-G14-0L6H-A4P, Festo G 1/4 Pneumatic Regulator - 0.06bar to 6bar, 1/4 in, 8bar max. input, 571299

Festo Pneumatic Regulator, G 1/4, 0.06 Bar to 6 Bar - VPPM Series - VPPM-8L-L-1-G14-0L6H-A4P

Use this 3-way proportional pressure regulator from Festo to regulate force in your pneumatic systems precisely and flexibly. It features a multi-sensor control to give you reliable, dynamic and speedy results. There are three default presets that you can choose from at the click of a button, making installation and activation quick and simple. Because it's IO-link compatible, you can easily connect it to your factory automation setup to improve productivity.

• Integrated pressure sensor with independent output
• Pressure is maintained in case of controller failure
• Choice of different setpoint specifications, such as current or voltage input, for flexibility in modular systems
• Clear LED (light-emitting diode) indicators make it easy to inspect and maintain your systems

Application Information

• Printing presses
• Packaging industry
• Welding machinery

How much power does this pressure regulator consume?

This pressure regulator from Festo has a maximum power consumption of 7 W and maximum current consumption of 300 mA.

Is this regulator waterproof?

Yes, this pneumatic regulator has an ingress protection rating of IP65, meaning it's dust-tight and protected against water projected from a nozzle.

Datasheet - VPPM-8L-L-1-G14-0L6H-A4P

Catalogue - 2030453

Catalogue - 2030453

Declaration of Conformity - 2030453

InstructionSheet - 2030453
