VPPM-12L-L-1-G12-0L10H-V1P-S1C1, Festo G 1/2 Pneumatic Regulator - 0.1bar to 10bar, 11bar max. input, 575237, Регулятор

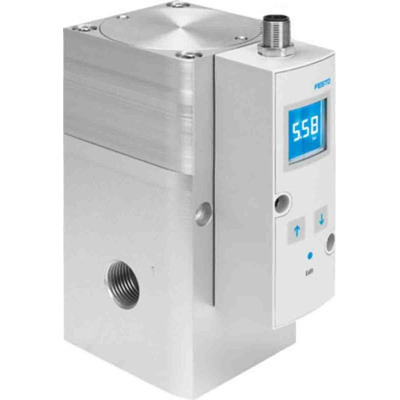

Festo Pneumatic Pressure Regulator, 0.1 to 10 Bar, 7000L/min Flow Rate - VPPM-12L-L-1-G12-0L10H-V1P-S1C1

Use this pneumatic pressure regulator from Festo to control the flow of air and gases through your system. It has a maximum input pressure of 11 bar and a wide pressure regulation range of 0.1 to 10 bar. This means it's a versatile choice that's suitable for both low-pressure and high-pressure applications. As the unit comes with a backlit LCD (liquid-crystal display), the pressure values are easy to read, even in low-light situations.

• High flow rate of 7000L/min for use in heavy-duty applications
• IP65 (ingress protection) rating means it's protected against dust and low-pressure water jets
• Low linearity error of 1% to ensure accurate pressure values
• Wide operating temperature range of 0°C to +50°C
• Anodised wrought aluminium alloy housing material is durable and corrosion-resistant, so suitable for use in humid conditions

Applications

• Heating, ventilation and air conditioning (HVAC) systems
• Medical and dental equipment

What pipe size is this pneumatic regulator compatible with?

This unit features three G1/2 pneumatic ports, making it suitable for use with small pipes and hoses that have compatible connectors.

Datasheet - VPPM-12L-L-1-G12-0L10H-V1P-S1C1

Catalogue - Proportional-Pressure Regulators VPPM
