LRS-1/4-D-MINI, Festo G 1/4 Pneumatic Regulator - 0.5bar to 12bar, 1/4 in, 16bar max. input, 194610

Festo Pneumatic Regulator, 1500L/min Flow Rate, 0.5 to 12 Bar Outlet Pressure - LRS-1/4-D-MINI

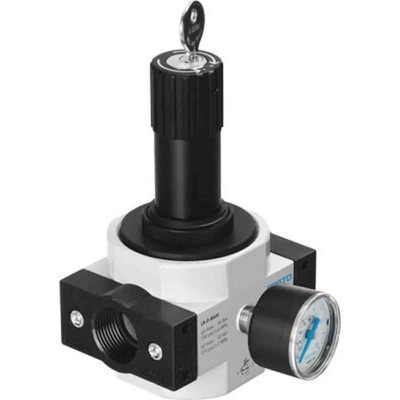

Looking for a compact pressure management solution for your pneumatic systems? Choose this regulator from Festo. It has a diaphragm that detects changes in pressure and triggers a control valve to adjust the inlet force to the equipment. The unit has a regulator head that sets the appropriate pressure for your system for efficient control. You can lock this head with a key for safety when it comes to maintenance. Delivering between 0.5 and 12 bar of output pressure, this component is a versatile tool that's useful in both light and heavy-duty applications. It weighs just 500g, making it easy to handle during installation.

• Flow rate of 1500l/min for quick air transmission
• Broad operating temperature range between -10°C and +60°C for use in demanding conditions
• Robust die-cast zinc housing provides resistance to impact and corrosion for use in harsh environments
• Can be assembled in any position for maximum flexibility
• NBR seals prevent air leakages for optimal performance

Applications

• Industrial chillers
• Commercial cooling systems
• Aerospace industry

What's the mechanical service life of this regulator?

This regulator has a mechanical service life of 20 million operating cycles, so you can rely on it for long-term performance.

Datasheet - LRS-1/4-D-MINI

Instruction Sheet - LFR(S)-/LR(S)-/LF(M.../X)-
