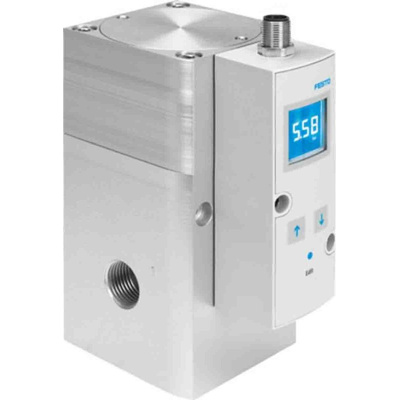

VPPM-12L-L-1-G12-0L6H-A4P-S1C1, Festo G 1/2 Pneumatic Regulator - 0.06bar to 6bar, 1/2 in, 8bar max. input, 575243

Festo G1/2 Pneumatic Regulator, 12W, 6 Bar Maximum Outlet Pressure - VPPM-12L-L-1-G12-0L6H-A4P-S1C1

Looking for a robust and efficient pressure-control solution for your pneumatic systems? Look to this high-performance pressure regulator from Festo. It has a pressure range between 0.06 and 6 bar, so it's suitable for most medium-scale pneumatic operations. Anodised wrought aluminium alloy housing provides superior durability and corrosion resistance, so you don't have to worry about rusting. For easy reading of the pressure values, the unit comes with a large backlit liquid crystal display (LCD) screen.

• Wide operating temperature range of 0°C to +50°C for use in harsh environments
• Maximum current consumption of 500mA (milliamperes) for energy efficiency
• IP65 (ingress protection) rated to withstand dust and low-pressure water jets
• Light weight of 2.05kg for easy handling

Applications

• Medical and dental equipment
• Food processing facilities
• Gas supply and delivery systems

What could cause this pressure regulator to fail?

A common cause of failure in this pressure regulator is leakage due to a broken diaphragm. If you notice any leakages from the diaphragm, you should replace it immediately to resolve the problem. Contaminants can also cause failure in this component, so regular checks on its filter must be carried out.

Datasheet - VPPM-12L-L-1-G12-0L6H-A4P-S1C1

Catalogue - Proportional-Pressure Regulators VPPM

Instruction Sheet - Proportional-Pressure Regulator
