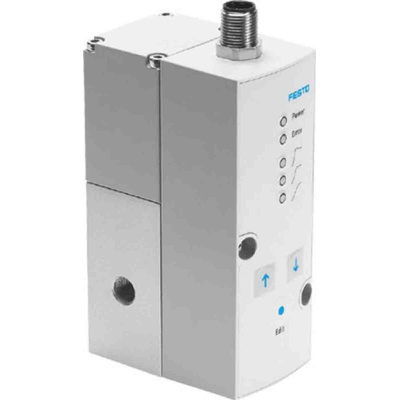

VPPM-6L-L-1-G18-0L6H-A4N, Festo G 1/8 Pneumatic Regulator - 0.06bar to 6bar, 8bar max. input, 542237

Festo G1/8 Pneumatic Pressure Regulator, 900L/min Flow Rate, 0.06 to 6 Bar Outlet Pressure - VPPM-6L-L-1-G18-0L6H-A4N

Looking for a reliable way to control the pressure level in your pneumatic system? Turn to this pneumatic pressure regulator from Festo. It controls the flow of compressed air and inert gases to maintain a consistent supply to your equipment. The anodised wrought-aluminium alloy housing is resistant to impact and corrosion, so delivers reliable long-term performance. At 400g, the unit is also lightweight, which means it's easy to handle and install. Its outlet pressure range of 0.06 to 6 bar makes this a suitable choice for low-pressure pneumatic applications.

• LED display shows pressure value for easy monitoring and status diagnosis
• Nominal flow rate of 900L/min (litres per minute) for use in high-flow applications
• Wide operating temperature range between 0°C and +60°C to withstand demanding environments
• IP65 (ingress protection) rating prevents contamination from dust and low-pressure water jets

Applications

• Gas cylinders
• Fuel cells
• Process and packaging machinery

How do I mount this pneumatic regulator?

You can mount this regulator using the through holes on the enclosure or with external accessories like a mounting bracket (203-9024) or H-rail mounting set (202-3740) from Festo.

Datasheet - VPPM-6L-L-1-G18-0L6H-A4N

Catalogue - Proportional-Pressure Regulators VPPM
