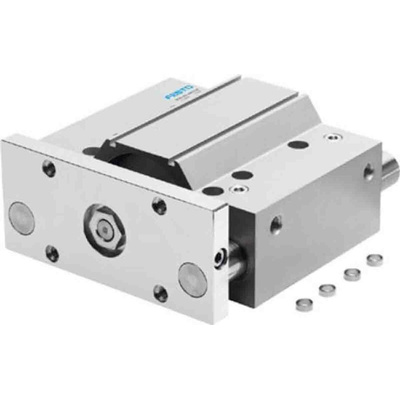

DFM-100-125-P-A-GF, Festo Pneumatic Guided Cylinder - 170896, 100mm Bore, 125mm Stroke, DFM Series, Double Acting

Festo Pneumatic Guided Cylinder, Double Acting - DFM Series - DFM-100-125-P-A-GF

With this pneumatic guided cylinder from Festo, you can apply controlled linear movement to sideloading tasks. Its high resistance to torques and lateral forces prevents the unit's piston from turning under heavy loads. This ensures operational stability and precise movement. Elastic cushioning plates at both ends of the cylinder help reduce operational noise and increase the unit's service life. The drive and guide are supplied in a single, compact housing that can be assembled in any position. This component is maintenance-free and suitable for clamping, lifting and stopping applications.

• Stroke length of 125 mm
• Double bore action
• Piston diameter of 100 mm
• Slide bearing type
• Maximum operating pressure of 10 bar
• Operating temperature range of -20°C to +80°C
• Unit weight of 17.09 kg
• Centre of gravity distance from working load to yoke plate of 125 mm
• Choice of compressed air supply ports

Range Information

• The Festo DFM series of guided pneumatic drives offers high load capacity and minimal cycle times
• The drives are compatible with a wide variety of mounting and attachment options

The Festo's DFM series of guided actuator have flexible cushioning plate to reduce noise during operation and increase service life. Integrated slots on the actuator body allow for incorporating proximity sensor to measure the linear motion of the piston. Its piston diameter is 100mm with stroke length which is 125mm and assembled in any position.

Ambient temperature -20 to 80 °C
Centre of gravity distance from working load to yoke plate 125 mm

Datasheet - DFM-100-125-P-A-GF

Catalogue - DFM-100-125-P-A-GF

InstructionSheet - DFM-100-125-P-A-GF
