QSML-M3-4-100, Festo Elbow Threaded Adaptor, M3 Male to Push In 4 mm, Threaded-to-Tube Connection Style, 130769

Festo Elbow Threaded Adaptor, M3 Male to Push In 4mm - QSML-M3-4-100

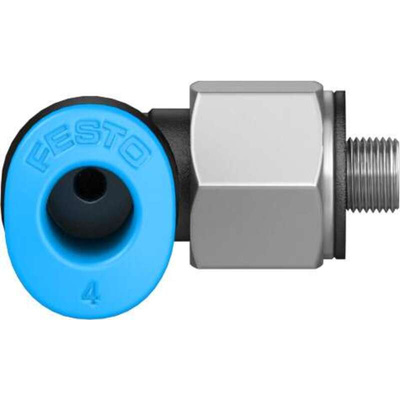

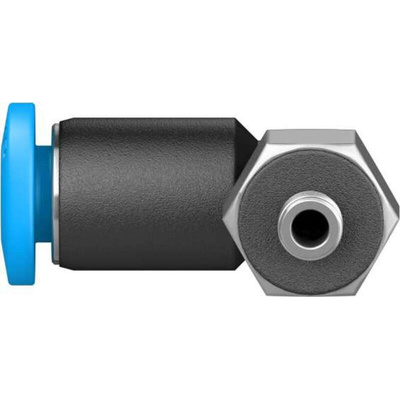

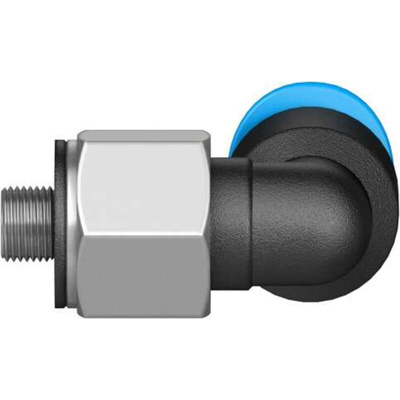

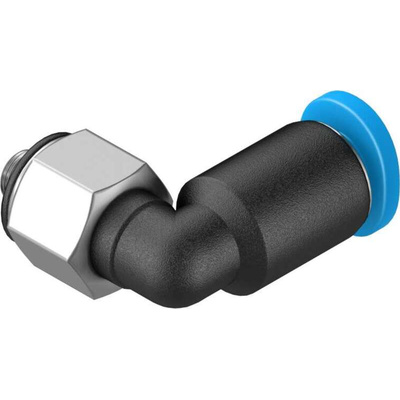

Looking for a reliable transmission joint for your pneumatic and hydraulic systems? Choose this elbow threaded adaptor from Festo. On one end, the L-shaped unit has a male M3 connector, which is made of high-alloy steel for maximum durability and corrosion resistance. On the other end, there's a thermoplastic push-in connector for easy installation and removal. The component's low weight of 3g makes it easy to handle and transport. It's 360° orientable, meaning you can install it in any direction. You'll find devices like this used in heavy-duty industrial and design applications.

• Wide operating temperature range of -10°C to +80°C for use in a wide range of challenging environments
• Nominal tightening torque of 0.48Nm for a tight and leak-proof fitting
• Polybutylene terephthalate (PBT) housing ensures resistance to impact and abrasion

Applications

• Automation prototype design
• High-pressure and low-pressure compressors
• Automotive industry

Where can I use this adaptor?

This adaptor is useful when you want to create an angled joint. The M3 male connector can be screwed onto a compatible metal pipe, while the push-in connector can be used with plastic pneumatic hoses.
