Festo Plug Connector, SDAS-MHS-M40-1L-PNLK-PN-E-0.3-M8 Series

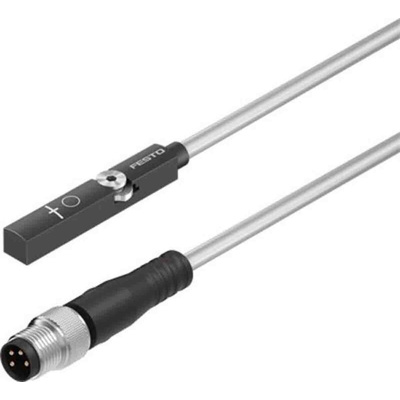

Festo Position Transmitter, M8 Connector Type, 52mm Sensing Range - SDAS-MHS-M40-1L-PNLK-PN-E-0.3-M8

Keep track of piston movement in your pneumatic drive with this position transmitter from Festo. Its typical scanning interval of just 2ms means you get readings in a snap. Simply insert the device from above into the T-slot of any Festo drive for speedy, hassle-free installation. It's a Hall effect sensor that uses magnetic fields to detect the position of an object, meaning there's no physical contact for minimal wear and a long service life. The PUR cable sheath protects against tears and abrasions, so you can rest assured it will stand up to use in tough industrial environments.

Features & Benefits

• Compact length of 0.3m for connections in tight spaces
• Gold-plated copper alloy contacts are corrosion-resistant and highly conductive for a stable connection
• Broad operating temperature range between -20°C and +70°C in a flexible installation for use in demanding environments
• Light weight of 9.5g puts minimal strain on your equipment

Applications

• Automotive repair
• Machine building
• Ultrasonic welding

How can I tell if this product is working properly?

For at-a-glance status information, this position transmitter features red and yellow LED indicators, so you can double-check it's working as it should.

Datasheet - SDAS-MHS-M40-1L-PNLK-PN-E-0.3-M8

Brochure - Sensor Systems

Catalogue - Position Transmitters

Manual - SDAS-MHS-M40-1L-PNLK-PN-E-0.3-M8
