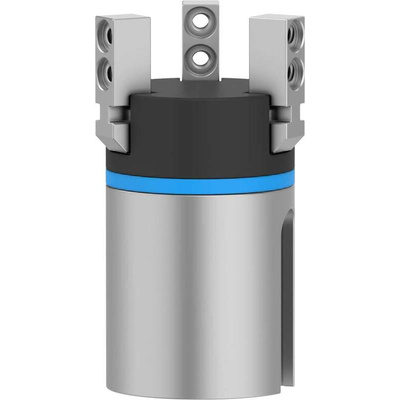

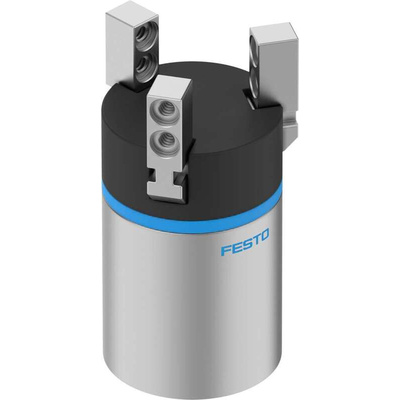

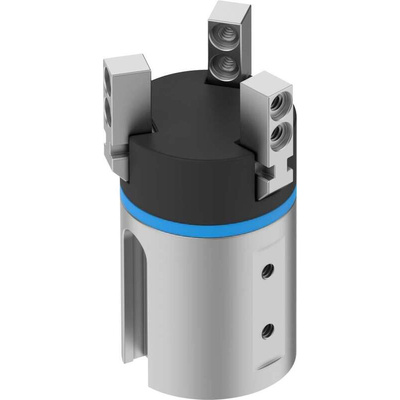

The Festo three-point gripper DHDS-16-A-NC has opening and closing times [Ms] were measured at room temperature at an operating pressure of 6 bar with the gripper horizontally mounted and without additional gripper fingers. The grippers must be throttled for larger loads [g]. Opening and closing times must then be adjusted accordingly.
Size 16
Stroke per gripper jaw 2,5 mm
Max. replacement accuracy <= 0,2 mm
Max. angular gripper jaw backlash axial <= 0,5 deg
Max. gripper jaw backlash Sz<= 0,02 mm
Datasheet - DHDS-16-A-NC
