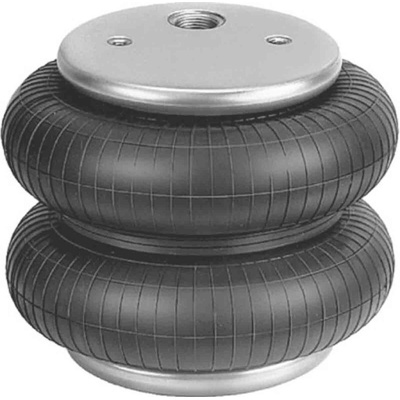

Festo Compact Air Bellows EB-250-185, 2 convolution , 185mm Stroke

Festo Compact Air Bellows, 265mm Nominal Diameter, 0 to 8 Bar Operating Pressure - EB-250-185

Drive or cushion movement in your industrial machinery by using this compact air bellows cylinder from Festo. Its housing is made of corrosion-resistant galvanised steel, so you can be sure of long-lasting use, even in harsh settings. The unit's 3kg weight makes it a heavy-duty option, and it has a tipping angle of 25° for versatility. Thanks to an operating pressure range between 0 and 8 bar, you can install it in demanding systems. An adjustable installation height of 75 to 275mm makes this cylinder an ideal choice for use in applications where space is limited.

Features & Benefits

• G3/4 thread size for easy compatibility with standard equipment
• Wide operating temperature range between -40°C and +70°C for use in demanding conditions
• Contains no moving mechanical parts, so maintenance is minimised

Applications

• Machine tools
• Medical equipment
• Transportation

What materials are this compact air bellows cylinder made of?

The component is made from a combination of robust natural and butadiene rubber material so it resists the wear and abrasion you'd expect with industrial use.

Datasheet - EB-250-185

Catalogue - Bellows Cylinders EB
