Festo 2 Finger Double Action Pneumatic Gripper, DHRS-16-A, Radial Gripping Type, Пневматический захват

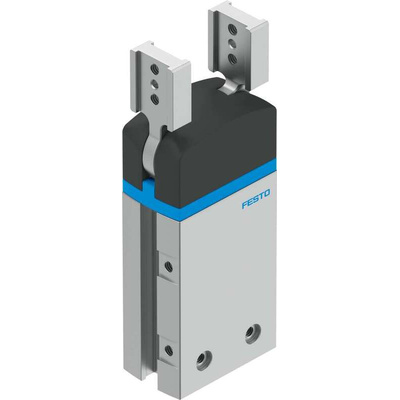

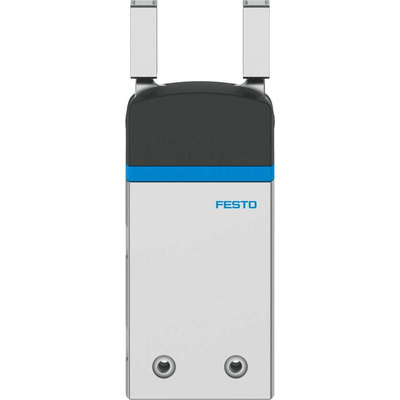

Festo Two-Finger,Double-Action Pneumatic Gripper - DHRS Series - DHRS-16-A

For pick-and-place applications in factory automation settings, choose this double-acting pneumatic gripper from Festo. It's designed with lateral gripper jaws that can support high torque loads of up to 62 Ncm. The unit is self-centring, so you can be sure of getting accurate placement with each cycle. It also has sensors to help with position detection, ensuring maximum repetition accuracy. Thanks to the high-alloy steel construction of the jaws, the gripper is durable and resistant to corrosion, so it offers a long service life.

• Can be used as a double-acting or a single-acting gripper for added versatility
• Compression spring for supporting or backing up the gripping forces
• Suitable for external and internal gripping for use with a variety of objects

Application Information

• Packaging systems
• Material processing units
• Factory automation

How long does the gripper take to open and close?

This unit has a minimum opening time of 61 ms at 6 bar and a minimum closing time of 63 ms at 6 bar. This means you can be assured of fast production cycles.

Datasheet - DHRS-16-A

Catalogue - 2031538

InstructionSheet - 2031538
