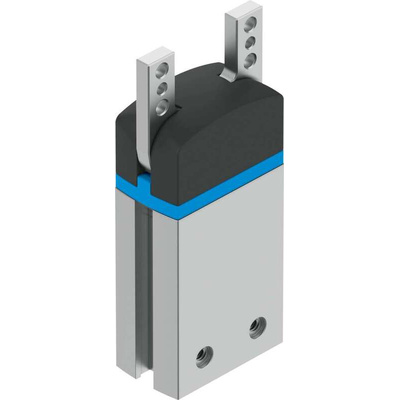

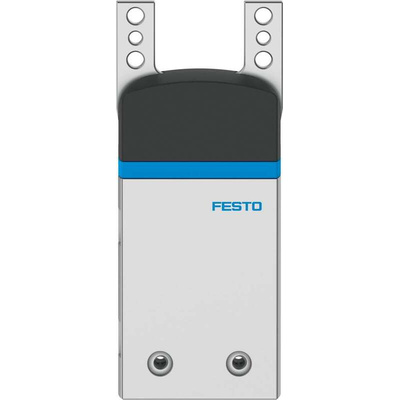

Festo 2 Finger Double Action Pneumatic Gripper, DHWS-16-A-NC, Angle Gripping Type

Festo Pneumatic Gripper, 40° Maximum Opening Angle, 4 to 8 Bar Operating Pressure - DHWS-16-A-NC

Do you need to safely move large objects in your industrial processes? This pneumatic gripper from Festo opens its angled jaws by up to 40°, making it easy to safely approach and capture items from all sides. As it has a repetition accuracy of 0.04mm, you can trust it precisely performs its instructed movements for close item control. For efficiency, this is a double-action unit, meaning both its opening and closing functions are powered by air.

Features & Benefits

• Performs up to four pneumatic operations a second for responsive movements
• Built-in proximity switch provides contact-free handling to minimise wear
• Supports mounting from front, back or underside for versatile installation
• Maximum gripping force of 50N for a secure hold

Applications

• Plastic processing
• Medical device manufacturing
• Pharmaceutical production
• Automotive industry

How quickly do the jaws on this pneumatic gripper operate?

The operating time of this pneumatic gripper varies depending on your system's air pressure. At a pressure of 6 bar, it has a minimum opening time of 62ms and closing time of 36ms for efficient control.

Datasheet - DHWS-16-A-NC

Catalogue - Angle Grippers DHWS

Instruction Sheet - DHWS-16-A-NC
