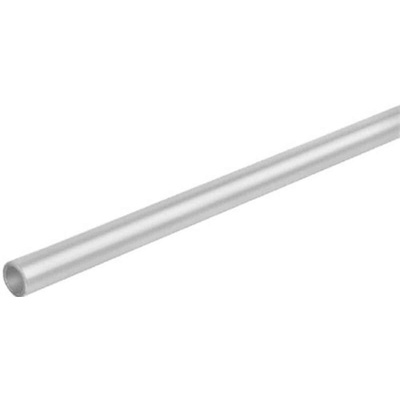

PQ-AL-28X1,5X3000, Festo 15bar Silver Aluminium Compressed Air Pipe, 28mm outer diameter, 3m

Festo Air Hose, Wrought Aluminium Alloy, -0.95 to 10 Bar Operating Pressure - PQ-AL-28X1,5X3000

Choose this air hose from Festo to transmit liquids and gases via your pneumatic systems. The piping is made from wrought aluminium alloy, so it's strong and rigid. This material is also corrosion resistant, which means it's compatible with common gases and glycols as well as petrol, mineral oils and saltwater. As the piping supports media at temperatures between -25°C and +75°C, you can trust it’s a safe choice for high-temperature and low-temperature applications. It’s supplied in a length of 3m, so you’ve got plenty to connect your pneumatic components at a distance from one another. Alternatively, you can cut the hose to the exact size needed for individual jobs.

Features & Benefits

• Supports pressures between -0.95 and 10 bar, so suitable for low-pressure applications
• Light weight of 0.33kg/m makes tubing easy to handle and install

Applications

• Liquid cooling
• Food production
• Railway pneumatics

What ambient temperatures does this product tolerate?

You can use this hose at ambient temperatures between -30°C and +75°C, so it’s a safe choice for use in harsh industrial settings.

DataSheet - PQ-AL-28X1,5X3000

Catalogue - Piping
