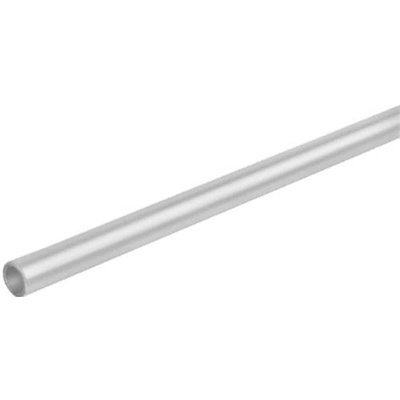

PQ-AL-18X1X3000, Festo 15bar Silver Aluminium Compressed Air Pipe, 18mm outer diameter, 3m

Festo Compressed Air Pipe, 15 Bar Operating Pressure Maximum, Wrought Aluminium Alloy Tube - PQ-AL-18X1X3000

Need piping that can handle the pressure? Use this durable and long-lasting compressed air pipe from Festo to keep your pneumatic system on the straight and narrow. At 2mm thick, it's a lightweight but robust option that comfortably handles up to 15 bar, making it an ideal choice for industrial setups. The wrought aluminium body itself is rust-repellent, so calls for minimal maintenance and keeps your workday stress-free.

Features & Benefits

• Wide operating temperature range between -30°C and +75°C suits use in demanding environments
• Light 0.144kg/m weight for no-sweat handling and installation

Applications

• Manufacturing systems
• Industrial production
• Pneumatic equipment
• Hand-held tools

Can I shorten this pipe?

Yes, you can cut this pipe down to size with a ZR pipe cutter (202-3291), circular saw or CNC machine. When trimming it, remember to wear PPE to safeguard your eyes and airways.

How do I mount this product to my system?

It's a snap to mount this product with a 19mm diameter clamp (145-9767). To install, position the pipe, snap the upper part in place and then screw it down to the support surface.

DataSheet - PQ-AL-18X1X3000
