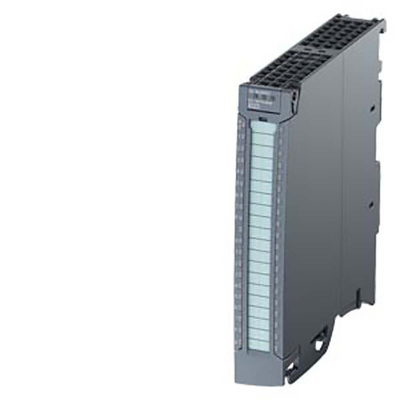

6ES7522-1BH10-0AA0, Siemens SIMATIC ET 200S Series Digital I/O Module, Digital, Transistor

Siemens Digital I/O Module, 500mA Output Current, 16 Channels - SIMATIC Series - 6ES7522-1BH10-0AA0

Automate your system in a snap with this Siemens digital I/O module. It's an essential bridge that links a SIMATIC S7-1500 controller with peripherals. The unit comes well-equipped with 16 channels arranged in groups of eight for smooth communication between your processor and multiple devices. Built-in short circuit protection kicks in with a response threshold of 1A, keeping linked circuits safe from sudden surges. As there's a front LED indicator, you’ll be able to spot errors straight away and reduce downtime. The unit comes with 40-pole push-in front connectors that achieve stable connections, making installation a breeze.

Features & Benefits

• Light weight of just 230g for easy handling during installation
• Low power loss of 2.2W reduces energy consumption to improve system efficiency
• Dimensions of 25 (W) x 147 (H) x 129mm (D) to slip neatly into your setup
• Reverse polarity protection shuts down power to prevent damage when electrical currents switch directions

Can this digital I/O module handle AC loads?

No. Like all transistor-type output modules, this unit can be used to control DC current up to the power supply voltage of the PLC.
