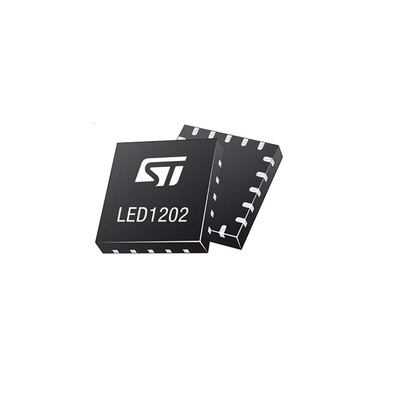

STMicroelectronics LED1202QTR LED Driver IC, -0.3 V → 6 V 20μA 20-Pin QFN

The STMicroelectronics LED1202 is a 12-channel low quiescent current LED driver. Its output current can be adjusted separately for each channel by 8-bit analogue and 12-bit digital dimming control. A common clock domain can be shared for timing synchronization. The device includes thermal shutdown and open LED detection for multi-device applications. The LED driver is available in WLCSP20 package 1.71 x 2.16 x 0.5 mm with 0.4 mm pitch and in QFN20 3x3 package 3 x 3 x 0.6 mm with 0.5 mm pitch.

Slow turn-on and turn-off time
Improves the system low noise generation performance
Phase shifting function helps to reduce the inrush current
8 configurable I²C slave addresses plus global address

Datasheet - LED1202QTR
