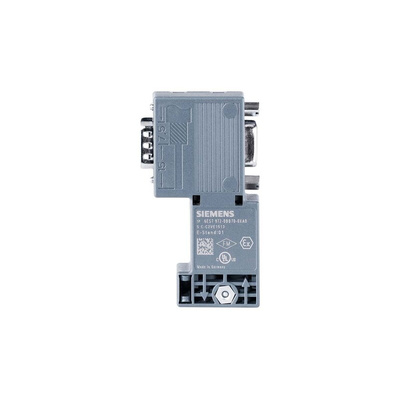

6ES7972-0BB70-0XA0, Siemens BUS Connector for Use with PROFIBUS bus cable

Siemens BUS Connector, 12Mbps Maximum Transfer Rate, Fast Connect - SIMATIC DP Series - 6ES7972-0BB70-0XA0

Cut through cable connection delays with this BUS connector from Siemens. Its integrated insulation displacement contacts quickly pierce through insulated wire, so you can take the job of cable tripping off your list. These contacts also create a reliable air-tight join that's protected against dust and moisture. Screw locks keep the unit firmly in place, which minimises the need for regular re-tightening. Strain relief provides cable support to prevent wires from cracking or twisting where they enter the plug. This connector is designed for use with Siemens PROFIBUS cables that hook-up process control devices in automated industrial networks.

• Wide operating temperature range between -25°C and +60°C making it suitable to use in harsh industrial locations
• IP20-rated housing is touch-proof and protected against objects larger than 12mm
• Data transfer rate between 9.6Kbps and 12Mbps to meet the needs of demanding networks
• Corrosion-resistant plastic enclosure is compatible with humid settings

How big is this BUS connector?

With compact dimensions of 72 (H) x 15.8 (W) x 36.4mm (D), the component needs minimal space. This helps you to build an efficient control network.

Insulation displacement method Fast Connect
