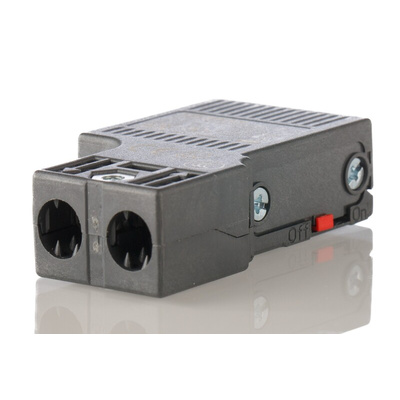

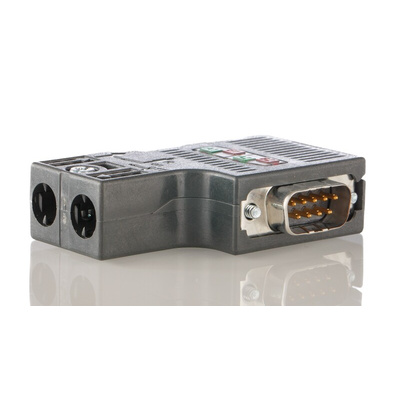

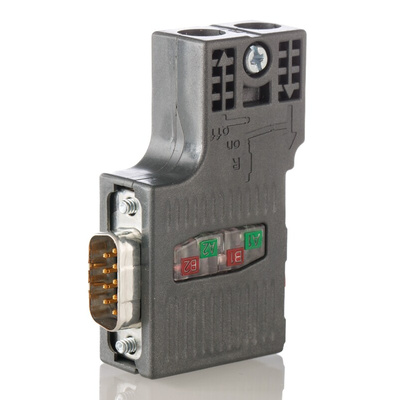

6ES7972-0BA52-0XA0, Siemens BUS Connector for Use with PROFIBUS Bus Cable

Siemens Bus Connector, 12Mbps, 90° Outlet - SIMATIC DP Series - 6ES7972-0BA52-0XA0

Optimise the monitoring and operation of measuring equipment in process automation applications with this bus connector from Siemens. It's designed for use with PROFIBUS (process field bus) cables, which are commonly used in industrial automation. This connector transfers data from measurement devices to a PLC (programmable logic controller) at a high speed of up to 12Mbps (megabits per second) for rapid transmission. It also features FastConnect technology for quick and simple assembly without the need to strip wires or connect cores. As it provides a digital connection, this connector is less impacted by electrical interference than some alternatives.

• Screw locking mechanism keeps cables securely in place
• 9-pin D-sub (D-subminiature) connector for a secure connection and high-quality signal transmission
• Tough plastic enclosure to improve durability and protect the connection from contaminants
• Right-angle body orientation for ease of installation in tight or awkward areas
• Strain relief to prevent damage to the cable through bending or twisting

Can this connector withstand harsh temperatures?

Yes, this connector has a broad operating temperature range of -25°C to +60°C for use in a variety of demanding industrial and commercial environments.

Datasheet - 6ES7972-0BA52-0XA0
