6ES7972-0BB42-0XA0, Siemens BUS Connector for Use with PROFIBUS bus cable

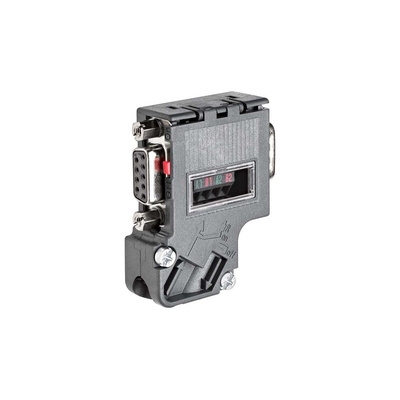

Siemens BUS Connector, 9-pin D-Sub Connector, PG Socket - SIMATIC DP Series - 6ES7972-0BB42-0XA0

Make a cable connection between your PLC and a remote device using this BUS connector from Siemens. It accepts two PROFIBUS cables and has a 9-pin connector to make a reliable communication connection. The housing is hinged to make it easy to open and close, giving you easy access for wiring. You can then lock it with a screw to keep your cables secure. A maximum data transfer rate of 12Mbit/s means that communication is efficient between your devices, while an integrated terminating resistor and isolating function keeps signals reliable. There's a slide switch to turn the resistor on and off, so you can open and close your line of communication as necessary. BUS connectors are a useful accessory in automated processing and manufacturing industry networks.

• Wide operating temperature range between -25°C and +60°C for use in demanding environments
• Strain relief protects your cables from damage through twisting or bending

What size is this BUS connector?

This BUS connector measures 15.8 (W) x 54 (H) x 39.5mm (D). These compact dimensions make it easy to fit into enclosures where space is at a premium.

Datasheet - 6ES7972-0BB42-0XA0

Manual - 6ES7972-0BB42-0XA0

Catalogue - Totally Integrated Automation
