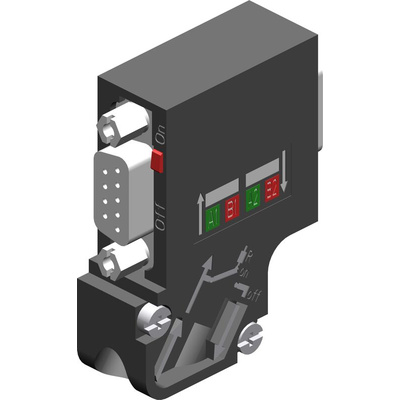

6ES7972-0BB61-0XA0, Siemens RS485 Bus Connector Series BUS Connector for Use with PROFIBUS bus cable

Siemens BUS Connector, 9 Pins, 2 Electrical Connections - SIMATIC Series - 6ES7972-0BB61-0XA0

Complete your industrial networking system using this 9-pin D-sub bus connector from Siemens. It's an easy way to transfer digital signals between items of machinery in your work environment. For easy building of a complete assembly, it's designed for use with the PROFIBUS bus cable. The unit has two electrical connections, enabling you to attach up to two cables to it for versatility. The cable connector's insulation displacement contacts let you securely attach wires without stripping them first, saving time and energy. It uses FastConnect technology, which ensures a secure fit that protects your cables from vibrations. Use this component to establish communication between your PLC and remote equipment.

Features & Benefits

• Built-in strain relief protects cable from damage through twisting
• Screw locking design for secure cable connection
• Integrated slide switch to control resistor combination
• Broad operating temperature range between -25°C and +60°C to withstand harsh industrial environments

What's the transmission speed of this connector?

This connector has a data transfer rate between 9.6kbit/s and 12Mbit/s so you can rely on it for fast signal transmission between your devices.

Datasheet - 6ES7972-0BB61-0XA0

Manual - PROFIBUS Bus Connector

Catalogue - Products For Totally Integrated Automation
