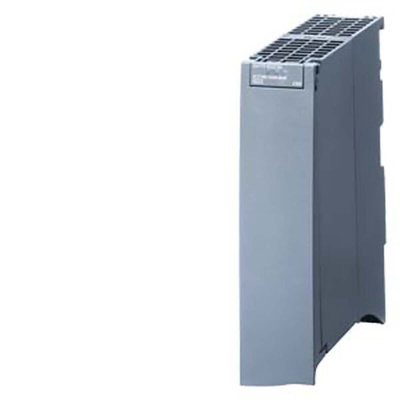

6ES7540-1AD00-0AA0, Siemens Communication Module for Use with SIMATIC S7-1500

Siemens Communication Module, RS232 BA Interface Type, 3 Communication Protocols - CM PTP Series - 6ES7540-1AD00-0AA0

Boost the reach of signals from your PLC with this communication module from Siemens. It's an expansion module that supports the exchange of data and signals between external sources and your control unit. For ease of assembly, you can use this device with a PLC from the SIMATIC S7-1500 range to manage your industrial automation system. Its multiple LED indicators turn on and off to show changes in its status, for easy configuration and troubleshooting in a flash. A built-in diagnostic alarm is on hand to swiftly grab your attention if a fault pops up.

Features & Benefits

• Minimal power loss of 0.6W for low energy waste
• Compact external dimensions of 147 (H) x 35 (W) x 127mm (D) to fit into a panel with limited space
• Maximum cable length of 15m for long-range transmissions
• DIN rail mounting for quick, tool-free installation

What communication protocols does this module support?

This versatile module supports Freeport, 3964(R) and telegram buffer communication protocols, making connection to different transmission systems possible.

What data transmission speed will I get from this module?

With a maximum data transmission rate of 19.2kbit/s, this module swiftly transfers signals between your systems.
