3UF7941-0AA00-0, Siemens SIRIUS Series Cable

Siemens Cable, 2.5m Length, 100g Weight - SIRIUS Series - 3UF7941-0AA00-0

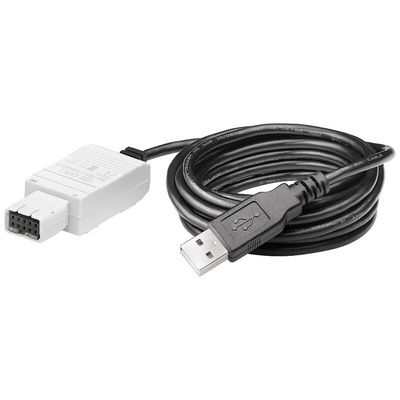

Link motor control devices to your PC for effective data exchange and diagnostics with this cable from Siemens. It has an adapter on one end that plugs into your SIMOCODE pro soft starter (253-7319) or 3SK2 safety relay (183-7199). At the other end, there's a standard USB connector for versatility. Moulded strain relief on both ends prevents damage caused by bending at sharp angles, so you can be sure of the cable's long-term performance. Use it to control parameters like motor speed and overvoltage set points to ensure the safe and automatic operation of equipment in the transportation industry and manufacturing plants.

• Cable length of 2.5m for easy connection to equipment
• Wide operating temperature range between -40°C to +80°C for use in demanding conditions
• EMC protected for safe use around sensitive equipment

What communication protocol is this cable compatible with?

This cable is compatible with the PROFIBUS protocol, which is the standard language used by the type of equipment it supports.

What's the voltage rating of this cable?

Length 2.5 m
For communication with SIMOCODE pro or SIRIUS 3RW44 soft starter or modular safety system 3RK3 via the system interface

This unit has a 30V voltage rating, making it useful for low-voltage control applications.

Datasheet - 3UF7941-0AA00-0

Manual - Motor Management and Control Devices

Manual - Motor Management and Control Devices
