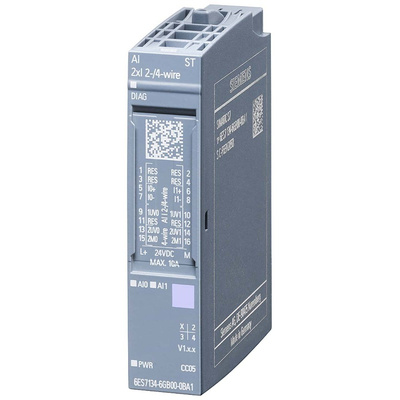

6ES7134-6GB00-0BA1, Siemens I/O SYSTEM 750 Series Analog Input Module, Analogue, 24 V

Siemens Analogue Input Module, 2 Inputs, 200mA Output Current - SIMATIC Series - 6ES7134-6GB00-0BA1

Use this analogue input module from Siemens to decipher signals in your industrial system. It senses currents and is able to gather measurements such as resistance and temperature. The unit turns these values into readable data for your PLC to use. It accurately records measurements with a speedy conversion time between 50 and 500ms, enabling the precise control of processes in automated manufacturing and plant applications. As this analogue input module is fitted with diagnostic alarms, messages and LEDs, you can be sure any troubleshooting will be done in a jiffy.

Features & Benefits

• Compact dimensions of 73 (L) x 15 (W) x 58mm (D) to fit into small terminal boxes
• Protection from reverse polarity and short circuits to safeguard against electrical malfunction
• Broad operating temperature range between -30°C and +60°C to handle harsh industrial environments

How do I mount this analogue input module?

The component clips into base units such as size A0 (239-2681), giving you the convenience of push-in terminals and enabling hot swapping. It fits horizontally or vertically on rails for flexibility.

Datasheet - 6ES7134-6GB00-0BA1
