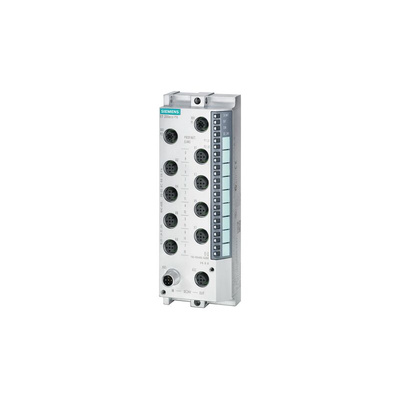

6ES7141-6BG00-0AB0, Siemens 1762 Series PLC I/O Module, Digital, Current

Siemens PLC I/O Module, 100Mbit/s Maximum Transmission Rate, IP67 Rating - SIMATIC Series - 6ES7141-6BG00-0AB0

Bridge the gap between peripheral equipment and your programmable logic controller with this PLC I/O module from Siemens. It has eight input and eight output ports, allowing you to manage multiple devices simultaneously. An integrated switch supporting the 100BASE-TX transmission procedure means you can be sure of fast data transfer. With a rated voltage of 24V DC, this unit is ideal for installation in low-voltage equipment like lighting systems and packaging machines. Reverse-polarity protection enhances system safety by preventing damage caused by incorrect power connections. An IP67 rating means the module is dustproof and resistant to immersion in 1m of water for 30 minutes.

Features & Benefits

• Light weight of 910g, so it's easy to handle and won't strain your equipment
• M12 circular connectors for secure and vibration-resistant connection to machinery
• Low power loss of 4.5W for energy efficiency and minimal heat dissipation
• Input delay of 3ms ensures swift response to faults and reduces operational downtime

Does this I/O module have short-circuit protection?

Yes, this device has electronic short-circuit protection that quickly reacts to limit the current flow, minimising the risk of component damage or failure.
