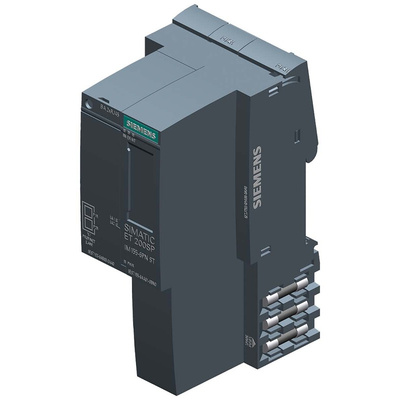

6ES7155-6AA01-0BN0, Siemens SIMATIC ET 200SP Series Interface Module for Use with PROFINET

Siemens Interface Module, 24V DC Voltage Rating, 1.9W Power Loss - SIMATIC Series - 6ES7155-6AA01-0BN0

Use this interface module from Siemens to support long-distance data transfer between devices. It uses PROFINET communication for efficient transmissions across your industrial Ethernet network. Thanks to green, yellow and red LED indicators that display the unit's operating status and errors, monitoring and troubleshooting are easy. A voltage rating of 24V DC makes this a good choice for use in low-power systems. As it has a low current consumption of 450 to 550mA, you can be sure of energy-efficient operation. You'll find modules like this one commonly used in the telecommunications industry and medical facilities.

Features & Benefits

• Short-circuit protection to prevent damage caused by electrical faults
• Wide operating temperature range between -30°C and +60°C in a horizontal installation and between -30°C and +50°C in a vertical installation for use in harsh environments
• Light weight of 147g to put minimal strain on your equipment

Is this module hot-swappable?

Yes, this module is hot-swappable, which means that parts can be replaced without the need to power your equipment down. This reduces system downtime and keeps your process productive.
