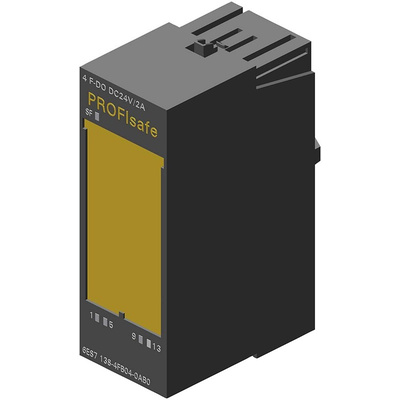

6ES7138-4FB04-0AB0, Siemens PLC Expansion Module for Use with ET 200S, Digital, 24 V

Siemens PLC Expansion Module For Use With ET 200S, 4 Outputs, 24V DC Voltage Rating - SIMATIC Series - 6ES7138-4FB04-0AB0

Quickly control your hardware with this Siemens PLC expansion module. It adds four digital outputs to your controller, letting you connect four machines to your automated system for efficient process management. With a 10W switching capacity for each output, the unit handles the large electrical loads that control heavy-duty appliances. A 24V DC voltage rating means it's widely compatible with standard power supplies. As it has integrated short-circuit protection, the module can be trusted to protect your connections against electrical faults. Narrow dimensions of 30 (width) x 81 (height) x 52mm (depth) make it ideal for mounting in busy control systems.

• Plugs directly into a control device for fast assembly
• Sends diagnostic messages to your PLC to keep you informed about system faults
• Low power loss of 3.5W for energy efficiency
• Supports cables up to 500m long to control hardware across large worksites

What's a digital output?

Digital outputs send binary signals from your PLC to control your equipment. Their off/on status is suitable for your machinery's basic start/stop functions.

Datasheet - 6ES7138-4FB04-0AB0
