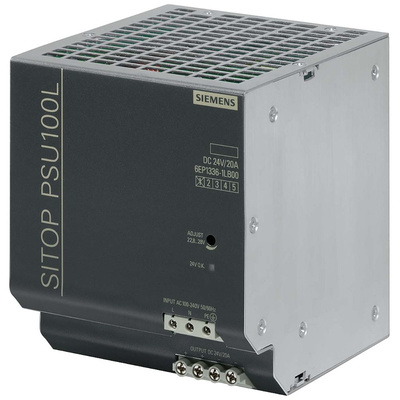

6EP1336-1LB00, Siemens 6EP DIN Rail Power Supply, 240V ac Input, 24V dc Output, 20A Output, 45W

Siemens DIN Rail Power Supply, Green LED, 240V Input - 6EP Series - 6EP1336-1LB00

Regulate the current needed to operate your equipment with this DIN rail power supply from Siemens. The device converts a flawed input voltage to the accurate output voltage to effectively power an electrical system. It accepts voltages from 100V AC to 240V AC and creates an output voltage up to 24V in both AC and DC current. This makes it compatible with a wide array of machinery. You can reliably use this DIN rail power supply in electrical control panels and power distribution systems.

• Easy clip-on installation via DIN rails, so no need for wiring
• Green LED (light-emitting diode) status display for easy-to-read signalling
• Low 1.8kg weight for minimal strain on your setup

Can I modify the output operations of this DIN rail power supply?

You can adjust the output settings of this device using the pre-installed potentiometer.

How do I connect this device to the input and output supplies?

The voltage supply is connected by screw terminals at the bottom of the power-supply enclosure. The internal supply is attached using one screw terminal for each 0.5mm² to 2.5mm² stranded wire. The output supply is connected via two screw terminals for each wire in the same size range.
