RS PRO Flame Retardant Epoxy Glass Thermal Insulating Sheet, 420mm x 297mm x 0.2mm

2035180
Производитель: RS PRO
Цена за шт.
13743.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

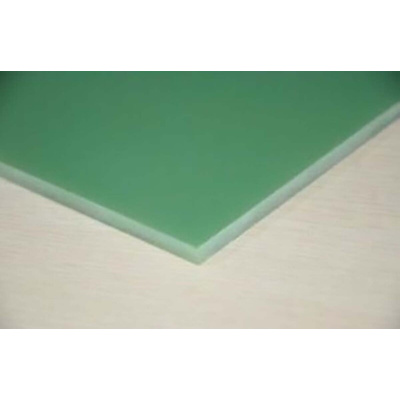

RS PRO FR4 Epoxy Glass Thermal Insulation Sheet

Introducing the range of RS PRO FR4 Epoxy Glass Thermal Insulation Sheets, commonly used as an electrical insulator, thanks to is excellent mechanical strength and performance. FR4 Epoxy Glass is a composite material made from woven fibreglass cloth combined with an epoxy resin binder to create a strong, flame-resistant insulator suitable for a wide range of applications.

Features and Benefits:

  • This RS PRO Epoxy Glass Thermal Insulation sheet has been specially engineered and designed to provide NEMA-grade FR4 properties

  • Thanks to the woven glass fabric combined with the epoxy resin binder, the sheet offers excellent mechanical strength and performance, while being an outstanding thermal and electrical insulator

  • The material properties offer higher suitability to environments with corrosive exposures, as well as being flame resistant and self-extinguishing

  • Sheet size: 420 mm x 297 mm

  • Sheet Thickness: 0.2 mm

Applications:

The RS Pro Epoxy Glass FR-4 Sheet with 420 x 297mm sheet size and 800 V/mil electrical strength has a Woven glass fabric combined with epoxy resin system.

Standards and Certifications:

NEMA grade FR-4 properties
Certifiable to MIL-I-24768/27, Type GEE-F
2300Lb bonding strength
66KV breakdown voltage

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.

Техническая спецификация
pdfRS PRO Datasheet
pdfRS PRO Datasheet
Длина:
420мм
Материал:
Epoxy Glass
Плотность:
1.85g/cm³
Рабочая температура - максимальная:
+130°C
Толщина:
0.2мм
Трудновоспламеняющийся:
Да
Форма:
Sheet
Ширина:
297мм
