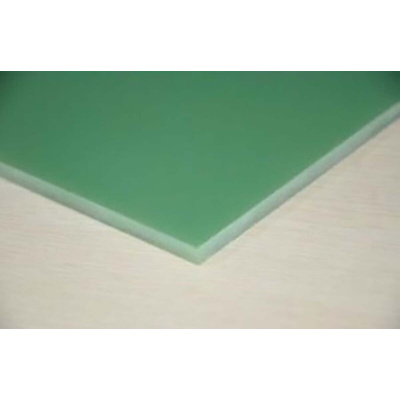

RS PRO Flame Retardant Epoxy Glass Thermal Insulating Sheet, 420mm x 420mm x 8mm

RS PRO FR4 Epoxy Glass Thermal Insulation Sheet

Introducing the range of RS PRO FR4 Epoxy Glass Thermal Insulation Sheets, commonly used as an electrical insulator, thanks to is excellent mechanical strength and performance. FR4 Epoxy Glass is a composite material made from woven fibreglass cloth combined with an epoxy resin binder to create a strong, flame-resistant insulator suitable for a wide range of applications.

Features and Benefits:

• This RS PRO Epoxy Glass Thermal Insulation sheet has been specially engineered and designed to provide NEMA-grade FR4 properties


• Thanks to the woven glass fabric combined with the epoxy resin binder, the sheet offers excellent mechanical strength and performance, while being an outstanding thermal and electrical insulator


• The material properties offer higher suitability to environments with corrosive exposures, as well as being flame resistant and self-extinguishing


• Sheet size: 420 mm x 297 mm


• Sheet Thickness: 8 mm

Applications:

The RS Pro Epoxy Glass FR-4 Sheet with 420 x 297mm sheet size and 800 V/mil electrical strength has a Woven glass fabric combined with epoxy resin system.

Standards and Certifications:

NEMA grade FR-4 properties
Certifiable to MIL-I-24768/27, Type GEE-F
2300Lb bonding strength
66KV breakdown voltage
