UKAS(2035752) RS PRO Multimeter Current

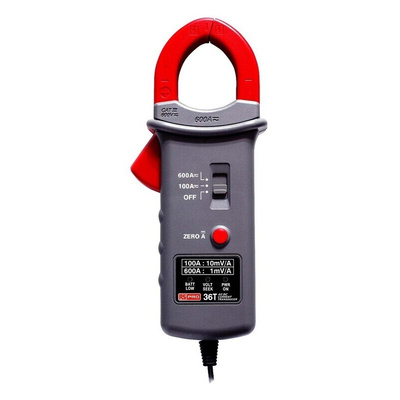

RS PRO Current Clamp, 600A ac, 600A dc

The RS PRO 36T current clamp adapter is a robust and high quality device ideal for use with digital multimeters to test and measure AC and DC current of up to 600A with a range of devices. With 2.0% basic DCA/ACA accuracy and hall sensor measurement type, reliable and accurate results can easily be achieved. In addition, the RS PRO 36T clamp meter adapter features non-contact voltage detection with indicator (Red LED flash) and CAT III 600V safety standards, ensuring live circuits are easily detected safely and effectively.

Features and Benefits

• Hall effect sensors for measuring ac or dc current up to 600A


• 2.0% basic DCA/ACA accuracy for reliable results


• Non-contact voltage detection with indicator (Red LED flash) for enhanced safety


• Zeroing key


• Coiled cable output plugs


• CAT III 600V safety standards


• Power indicator (Green LED flash)


• 40 Hz to 400 Hz bandwidth

Applications

Current clamp adapters are devices commonly used with multimeters or similar instruments to accurately measure currents on a wide range of devices. Current clamps feature isolated jaws for non-contact voltage and current measurement safely and effectively.

Standards

CAT III 600V

FAQs

What measurement type is used?

The RS PRO 36T features a hall sensor measurement type.

What is the clamping capacity?

The maximum clamping capacity is 35mm.

What is the bandwidth?

40 Hz to 400 Hz.
