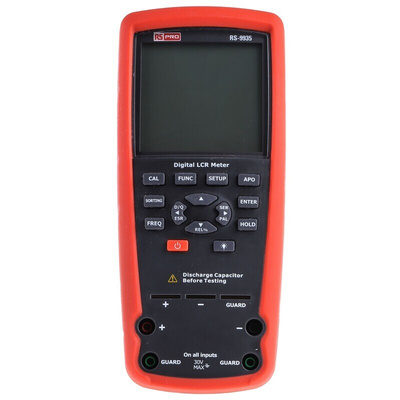

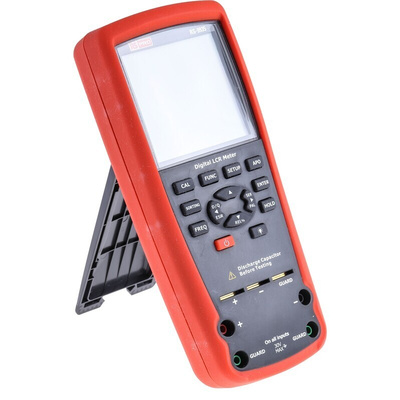

RS PRO RS-9935 Handheld LCR Meter 2mF, 200 MΩ, 2000H

RS PRO LCR Digital Meter

The RS PRO LCR digital meter is compact and high quality meter ideal for measuring a variety of parameters including Inductance (L), Capacitance (C) or Resistance (R), as well as secondary parameters including dissipation factor, quality factor, phase angle, equivalent series and parallel resistance (ESR or Rp). This robust and professional handheld LCR meter utilizes an automatic measurement function for measuring parameters with ease and features various selectable test frequencies up to 100kHz. The RS PRO LCR digital meter features a sleek and stylish design, with user-friendly interface and dual LCD display for quick and easy measurement of electronic device components.

Features and Benefits:

• Dual LCD display screen allowing you to quickly take readings and measurements


• Support backlight and buzzer sound driver to ease of use in a variety of environments


• Ideal for testing various parameters including Inductance, Capacitance and Resistance


• Variety of selectable test frequencies including 100/120/1k/10k/100kHz


• Auto LCR smart check and measurement for quick and efficient measurement.


• Multi level battery voltage detector

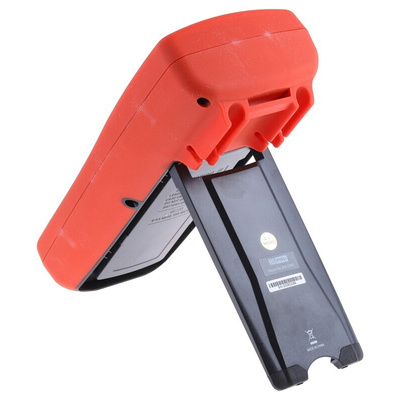

• Sleek and stylish handheld design with durable case for protection

Applications:

LCR meters are a type of electrical test and measurement device used to measure a wide range of parameters including Inductance, Capacitance and Resistance. LCR meters can often feature a variety of selectable test frequencies, making them highly versatile devices. Many LCR meters can also measure parameters on DUT such as:

• Quality factor


• Phase angle


• Dissipation factor


• Parallel resistance


• Equivalent series

Certification

CE

FAQs

What parameters can this LCR measure?

Inductance (L), Capacitance (C) or Resistance (R), dissipation factor, quality factor, phase angle, equivalent series and parallel resistance.

What frequencies are selectable?

Depending on the DUT (device under testing), this LCR meter features selectable frequencies of 100Hz/120Hz/1kHz/10kHz/100kHz.

Does this feature Auto-ranging?

Yes, this model features an auto-ranging capability allowing for quick and efficient testing.

Is this battery operated?

Yes, this LCR meter is powered via AA batteries (included).
