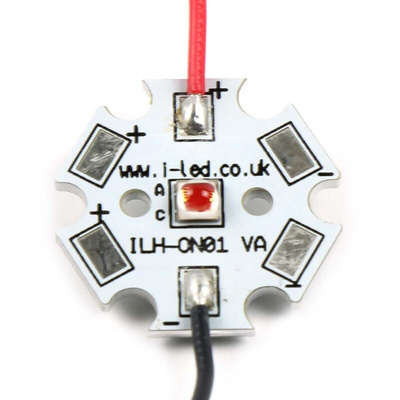

Intelligent LED Solutions ILS IHH-OG01-HYRE-SC231-WIR200., P2720 LED Circular Array, 1 Red LED

At the heart of each Power Star is an OSLON SSL Square LED. OSLON® SSL Hyper Red LEDs can be driven up to 1000mA and Deep Blue LEDs can be driven up to 2000mA while OSRAM’s latest power chip technology remains efficient even at the highest drive currents. A low thermal resistance of 7K/W ensures cool running and a highly efficient product. Power Stars are compact, powerful LED light sources built on aluminium substrates for optimal thermal management. Available with 200mm wires as standard.

Contains OSLON SSL Square LEDs with integral 120 degree silicone resin Lens
Up to 100,000 Hour lifetime to 70% of original brightness
Mounting holes using M3 screws allows easy installation
Size (L x W x H): 20mm x 20mm x 3.85mm
Available with 200mm connecting wires
Secondary Lens can be fitted
Suitable Heatsink available
Matching Power Supplies available
Power Stars can be linked together to produce longer chains
Current range for Hyper Red 100 to 1,000mA
Current range for Deep Blue 200 to 2,000mA

Datasheet - IHH-OG01-HYRE-SC231-WIR200.
