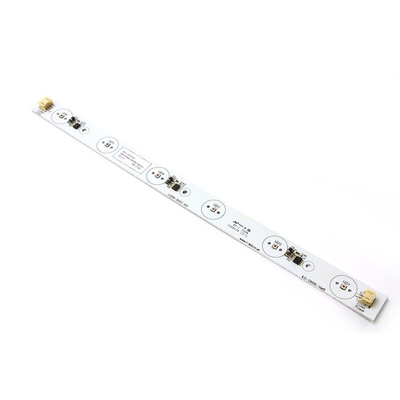

IHS-OG06-HYRE-SD231., Intelligent LED Solutions 10.8V dc Red LED Strip Light, 300mm Length

At the heart of each Strip are 6 OSLON SSL Square LEDs. OSLON® SSL Hyper Red LED can be driven up to 1000mA and Deep Blue LED can be driven up to 2000mA. While OSRAM’s latest power chip technology remains efficient even at the highest drive currents. A low thermal resistance of 7K/W ensures cool running and a highly efficient product. Simple Plug & Play feature utilising industry standard connectors.

OSLON SSL Square Strips contain OSLON® SSL Square LEDs with integral 120 degree silicone resin Lens
Up to 100,000 Hour lifetime to 70% of original brightness
Mounting holes using M3 screws allows easy installation
Size (L x W x H): 300mm x 20mm x 7mm
Brightness adjustable by external dimming gear
Single input voltage. Each board has own regulation built-in
Operation with 24VDC Power Supply
Secondary Lens can be fitted
Suitable Heatsinks available
Matching Power Supply available
Power Supply sections strips can be linked together to produce longer chains

Datasheet - IHS-OG06-HYRE-SD231.
