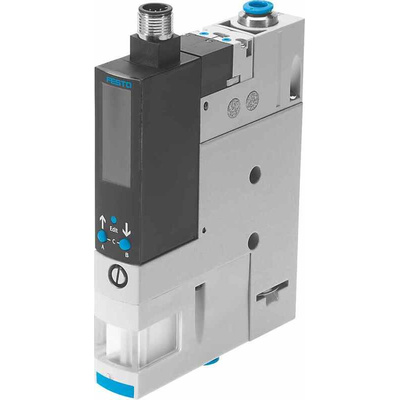

OVEM-10-H-B-QO-CE-N-1P, Festo Vacuum Pump, 0.95mm nozzle , 3.5bar 19.5L/min, OVEM series

Festo Vacuum Pump, 0.95 mm Nozzle, 19.5 L/min - OVEM Series - OVEM-10-H-B-QO-CE-N-1P

You can use this vacuum generator pump from Festo to pump air from one part of your pneumatic system into another. You can also attach a suction cup in order to safely move a workpiece between locations. The pump is quick and easy to install thanks to Festo's push-in fitting. It can also save you space, as all controls are accessible from one side of the device.
The generator is easy to use and offers a fast build-up of vacuum using an integrated solenoid valve. You can monitor pressure via an LED (light-emitting diode) display and pressure drops are avoided thanks to the built-in check valve. There's also an integrated silencer that reduces noise levels also cuts the need for maintenance. A built-in filter guards against contamination in the workings.

• Nozzle diameter of 0.95 mm makes for a compact, space-saving component
• Air supply time at a nominal operating pressure of 0.2 s means you can turn airflow on or off quickly
• Operating pressure of 2 bar to 8 bar for a wide range of applications
• Maximum suction flow of 19.5 L/min so you can pump air rapidly and efficiently
• Filtration grade of 40 μm prevents contamination of airflow

DataSheet - OVEM-10-H-B-QO-CE-N-1P

Catalogue

Instruction Sheet
