OVEM-10-H-B-QO-CE-N-LK, Festo Vacuum Pump, 0.95mm nozzle , 3.5bar 19.5L/min, OVEM series

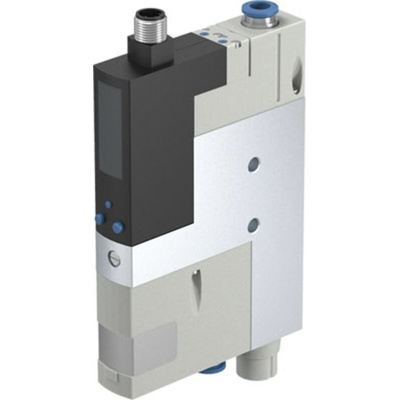

Festo Modular Vacuum Generator, 0.95mm Nozzle, 73dB - OVEM-10-H-B-QO-CE-N-LK

Use this vacuum generator from Festo to control the movement of fluids in your pneumatic equipment. It has a silencer made from wrought-aluminium alloy and PU (polyurethane) foam, which muffles its noise to a moderate level of 73dB. This makes it about as loud as a washing machine, meaning it's safe to use in factory settings. For versatility, this unit has an integrated filter that prevents contamination. Its filtration grade of 40μm (micrometre) ensures it effectively blocks small particles to keep the generator running efficiently in harsh industrial environments.

• Surge strength of 0.8kV prevents damage from electrical malfunction
• Backlit LCD (liquid crystal display) shows operating status for easy monitoring
• Sealed with NBR (nitrile butadiene rubber) to prevent leakage
• IP65 (ingress protection) rating means it's dustproof and protected from low-pressure water jets

Applications

• Printing presses
• Food production
• Scientific research

How do I configure this vacuum generator?

You can configure this device through its display and buttons. It's also compatible with standard IO-Link protocol, so you can connect it to an industrial communication system to transmit its operating signals.

Can I manually override this vacuum generator?

Yes. In the event of an emergency, you can manually override this device by pressing the blue buttons on the enclosure.

DataSheet - OVEM-10-H-B-QO-CE-N-LK

Catalogue - Vacuum Generators OVEM
