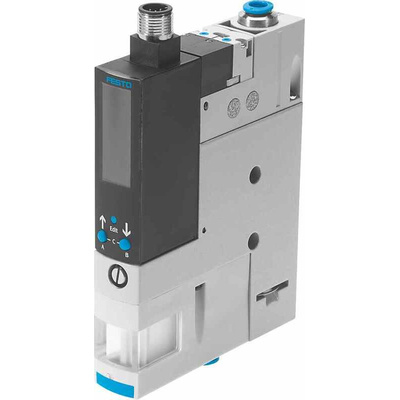

OVEM-10-H-B-QO-CE-N-2P, Festo Vacuum Pump, 0.95mm nozzle , 3.5bar 19.5L/min, OVEM series

Festo Vacuum Pump, 0.95 mm Nozzle, 19.5 L/min - OVEM Series - OVEM-10-H-B-QO-CE-N-2P

Need to safely move a workpiece from one location to another? This vacuum generator pump from Festo can be securely attached to delicate or awkward objects with a suction cup. You can also use it to pump air from one part of a pneumatic system into another area. The device features Festo's innovative fittings, so it's quick and easy to install. You simply push the component into the compatible fitting for a secure and stable installation.
As all controls are accessible from one side of the device, you can save space when installing. The pump has a built-in solenoid valve, so vacuum build-up and purging is fast. The ejector pulse for vacuum purging is also adjustable via a flow control screw.

• Nozzle diameter of 0.95 mm is compact
• Air supply time at a nominal operating pressure of 0.2 s ensures airflow can be turned on or off quickly
• Operating pressure of 2 bar to 8 bar suits a wide range of industrial applications
• Maximum suction flow of 19.5 L/min so you can pump air rapidly and efficiently
• Filtration grade of 40 μm stops airflow contamination

DataSheet - OVEM-10-H-B-QO-CE-N-2P

Catalogue

Instruction Sheet
