VN-T3-BP-NRH, Festo Vacuum Pump, VN series

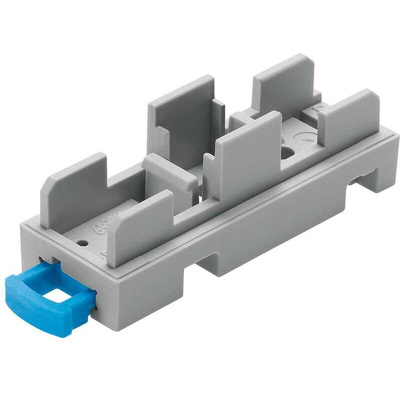

Festo Vacuum Pump Mounting Plate, 3.5g Weight, H-Rail Mounted - VN-T3-BP-NRH

When you need a quick way to fit a vacuum pump in your pneumatic system, choose this mounting plate from Festo. Manufactured from reinforced POM, this product is strong and hard-wearing. It's resistant to chemicals and organic solvents, so it can withstand the stresses of heavy-duty industrial use. For convenient installation, simply clip the plate onto a standard H-rail or use the pre-drilled through holes to fasten it in place with screws.

Features & Benefits

• Light weight of 3.5g won't strain your equipment
• Compact dimensions of 57.9 (L) x 14 (W) x 8mm (H) for installation in setups where space is tight
• Broad operating temperature range between 0°C and +60°C for use in hot industrial environments

Applications

• Medical technology
• Printing presses
• Chemical processing facilities

What's the VN series?

Vacuum generators from Festo's VN series come with an integrated mechanical ejector pulse and solenoid valve for reliable and energy-efficient operation. Since these pumps are directly attached to the suction gripper, they offer extremely fast evacuation, meaning cycle times are greatly reduced. Handy push-fitting connections save time and hassle during installation.

DataSheet - VN-T3-BP-NRH

Brochure - Front-End Unit

Catalogue - Mounting Plates

Instruction Sheet - VN-T3-BP-NRH
