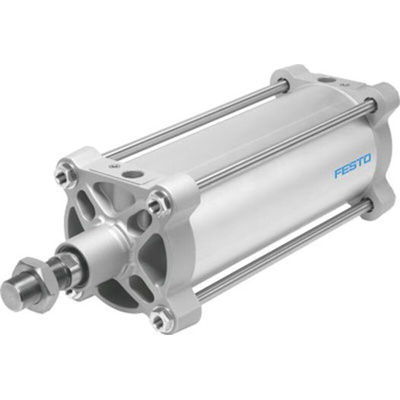

Festo Pneumatic Cylinder - 2390150, 200mm Bore, 500mm Stroke, DSBG-200-500-PPVA-N3 Series, Double Acting

2036468
Номер производителя: DSBG-200-500-PPVA-N3Производитель: Festo
Цена за шт.
538274.10 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Festo Pneumatic Cylinder, M36 Piston Rod Thread, 0.6 to 10 Bar Operating Pressure - DSBG-200-500-PPVA-N3

When you need a powerful but lightweight pneumatic cylinder for use in an industrial setting, choose this 200mm bore option from Festo. The double-action operation is fast, strong and energy-efficient, and the unit offers effective control over movement as air moves in both directions. For added control, you can manually fine-tune the degree of damping with an adjustment screw. Thanks to its tie-rod design and improved cover, this is the lightest large-diameter cylinder in its class. It comes complete with PPV cushioning at both ends to prevent overloading.

Features & Benefits

• Wide operating temperature range between -20°C and +80°C for use in challenging environments
• Die-cast aluminium cover delivers high strength without adding much weight

Applications

• Machine building
• Mining
• Process automation

What's the benefit of using a pneumatic cylinder rather than a hydraulic cylinder?

Pneumatic cylinders are cleaner. Since they use air as their operating medium, there's no contamination of the surrounding environment in the event of a leak. Storage requirements for compressed air are also significantly lower than for hydraulic fluids. Since air encounters less resistance than oil, energy loss is lower in a pneumatic cylinder than in a hydraulic alternative.

Техническая спецификация
pdfDatasheet - DSBG-200-500-PPVA-N3
pdfBrochure - Standard Cylinders
pdfCatalogue - Standards-Based Cylinders DSBG
Вес:
15.5кг
Давление - максимальное рабочее:
10 бар
Действие:
Double
Диаметр:
200мм
Испытательный вес:
15493 g
Модель р:
2390150
Отверстие:
200мм
Пневматическое соединение:
G 3/4
Производитель - серия:
DSBG-200-500-PPVA-N3
Рабочая температура - максимальная:
+80°C
Рабочая температура - минимальная:
-20°C
Род резьбы поршневого стержня:
Male
Стандарт ISO:
15552
Стандарт VDMA:
VDMA24364-B1/B2-L
Тип демпфирования:
Pneumatic Cushioning
Ход:
500мм
