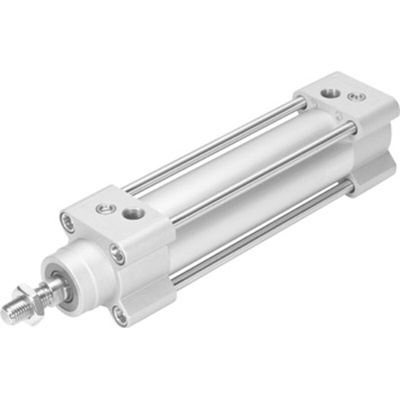

Festo Pneumatic Cylinder - 1646558, 40mm Bore, 500mm Stroke, DSBG-40-500-PPVA-N3 Series, Double Acting

Festo Pneumatic Cylinder, PPV Cushioning, 0.7J Impact Energy - DSBG-40-500-PPVA-N3

Want your equipment to move backwards and forwards? Trust this double-acting pneumatic cylinder from Festo to give things a push in the right direction. It's a workhorse that pushes 754N and pulls 633N, making it ideal for heavy-duty applications. You can rest assured this component won't buckle under pressure, as it's designed to withstand up to 16 bar. To boost the unit's service life, PPV cushioning prevents the piston from slamming home.

Features & Benefits

• Operating temperature range between -20°C and +80°C to suit harsh conditions
• Standard G1/4 pneumatic connection for easy installation in your existing system
• Die-cast aluminium body is corrosion resistant, so safe to use in damp settings

Applications

• Factory automation
• Assembly lines
• Drinks production

What accessories pair with this product?

Customising your setup is a cinch thanks to the cylinder's wide compatibility. Install it with push-in fittings (121-6173), rods (121-5548) and proximity sensors (121-5836) to create a bespoke system.

How do I mount this component to my system?

You can mount it in any position with the help of a foot (121-4376), swivel (121-5846) or trunnion flange mounting accessory (203-0934).
