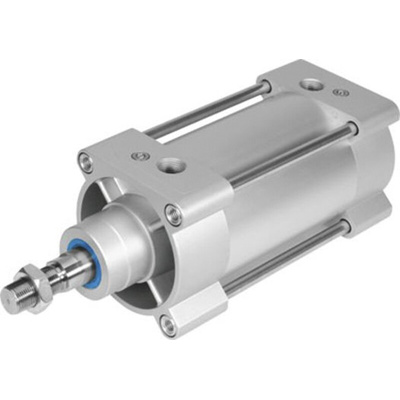

Festo Pneumatic Cylinder - 1646808, 100mm Bore, 200mm Stroke, DSBG-100-200-PPVA-N3 Series, Double Acting

Festo Pneumatic Cylinder, Double-Acting Type, G1/2 Pneumatic Connection - DSBG-100-200-PPVA-N3

Got a repetitive back-and-forth task to handle? Give the job to this Festo pneumatic cylinder. When connected to a source of compressed air, its 100mm piston rod moves in response to an electrical signal, producing precise linear motion. The cylinder's double-acting, meaning each end has a port that allows pressurised air in or out, so you can breeze through tasks that involve movement in both directions.

Features & Benefits

• Die-cast aluminium coating is corrosion-resistant for use in areas with high levels of water vapour
• Can be mounted in any position to provide greater flexibility for your setup
• Broad operating temperature range between -20°C and +80°C means it holds up in harsh situations

Applications

• Manufacturing industry
• Automotive sector
• Engine control systems

What's the stroke force of this cylinder?

At an operating pressure of 6 bar, this sturdy unit has a return stroke force of 4,418N and an advance stroke force of 4,712N.

What operating pressure range does this cylinder handle?

This cylinder has a wide operating pressure range between 0.4 and 12 bar, so it's a versatile option.
