LR-1/2-D-7-I-MIDI, Festo G 1/2 Pneumatic Regulator - 0.5bar to 7bar, 1/2 in, 16bar max. input, 192315

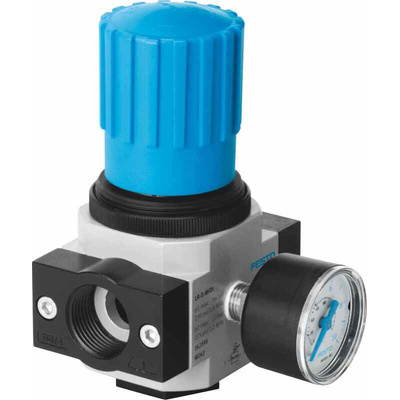

Festo Pneumatic Regulator, G 1/2 Port Connection - LR-1/2-D-7-I-MIDI

Looking for a reliable pressure regulator to maintain a constant outlet pressure in your pneumatic system? This midi-size regulator from Festo can help your system cope with varying demand. You can set it to the desired pressure using the rotary knob, which is lockable to guard against accidental readjustments. The unit offers minimal pressure hysteresis, meaning it delivers consistent performance whether the pressure is increasing or decreasing. It's fitted with a pressure gauge for easy monitoring, with two pressure gauge connections to allow you to fit different options.

• Nitrile rubber seals guard against leakage
• Operating temperature range of -10°C to +60°C makes it suitable for a wide range of environments
• Die-cast zinc housing combines strength with light weight

Applications

• Pneumatic systems
• Industrial machine automation
• Manufacturing plants

Where can this midi pressure regulator be installed?

This pressure regulator is suitable for mounting either inline, or you can install it on a panel with accessories.

How does a directly controlled diaphragm regulator work?

A directly controlled diaphragm regulator is the simplest type of pressure regulator. A diaphragm assembly directly controls a spring-actuated valve, with pressure from the flowing air compressing the spring to close the valve.
