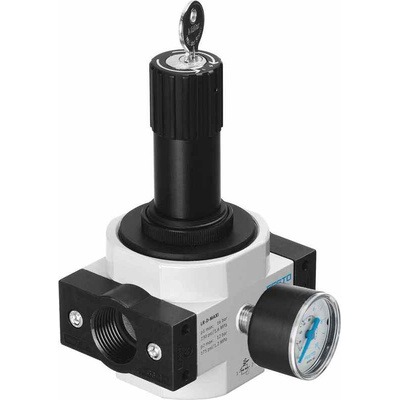

LRS-1/2-D-7-MIDI, Festo G 1/2 Pneumatic Regulator - 0.5bar to 7bar, 1/2 in, 16bar max. input, 194646

Festo G 1/2 Pneumatic Regulator, 0.5 Bar to 7 Bar - LRS Series - LRS-1/2-D-7-MIDI

Choose this pneumatic regulator from Festo to ensure constant pressure of compressed air in downstream processes. The unit uses direct-operation technology and offers efficient control with fast response times. Plus, you don't need a minimum pressure differential, making it a versatile choice that can be assembled in any position. NBR (nitrile rubber) seals on this unit provide good abrasion and compression set resistance. Thanks to its simple yet robust construction, this regulator offers a long service life.

• Compact midi unit saves space in factory automation settings
• Two pressure gauge connections for flexible fitting options
• Zinc die-casting construction for durability and superior corrosion resistance
• Good regulating characteristics with minimal pressure hysteresis for higher productivity
• Wide operating temperature range of -10°C to +60°C for use in tough industrial applications

Application Information

• HVAC (heating, ventilation and air-conditioning) units
• Home heating furnaces
• Medical and dental equipment

Does this unit accommodate for changes in load pressure?

Yes, this regulator is primary pressure-compensated, meaning it adjusts automatically to compensate for changes in system pressures.

How do I mount this regulator?

This unit is suitable for front-panel and in-line installation.

Datasheet - LRS-1/2-D-7-MIDI

Catalogue - Air Preparation Units

Catalogue - LRS-1/2-D-7-MIDI

Instruction Sheet - LRS-1/2-D-7-MIDI
