LR-1/4-D-7-I-MINI, Festo G 1/4 Pneumatic Regulator - 0.5bar to 7bar, 1/4 in, 16bar max. input, 192301

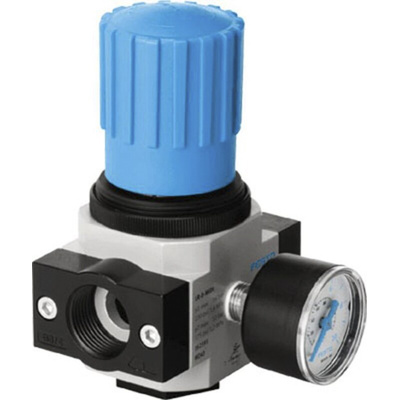

Festo Pneumatic Regulator, 1600L/min Flow Rate, 0.5 to 7 Bar Outlet Pressure - LR-1/4-D-7-I-MINI

Maintain a constant output pressure in your pneumatic system with this regulator from Festo. It has a rotary knob which moves the diaphragm, so each adjustment directly reduces or increases the flow of air or gas for simple and efficient manual control. An integrated gauge means you know when you've reached the desired pressure and a lock on the knob prevents tampering after setting. As this regulator is compatible with pressures up to 16 bar and handles a maximum flow rate of 1600l/min, it works safely with powerful equipment.

• Mountable in any position for installation flexibility
• Die-cast zinc base and housing is strong and resistant to impact for use in demanding environments
• Lubricated operation is possible for increased compatibility with oiled systems, as well as for reducing friction
• Maximum hysteresis of 0.2 bar means pressure regulation is precise

Applications

• Industrial automation
• Food processing
• Textile manufacturing
• Machine tools

What is the minimum outlet pressure this pneumatic regulator works with?

This pneumatic regulator works with a minimum outlet pressure of 0.5 bar. It has a regulation range between 0.5 and 7 bar, so you can make small and large adjustments.

Datasheet - LR-1/4-D-7-I-MINI

Instruction Sheet - LFR(S)-/LR(S)-/LF(M.../X)-
