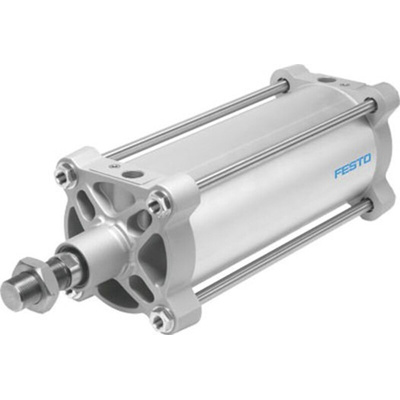

Festo Pneumatic Cylinder - 2029470, 160mm Bore, 250mm Stroke, DSBG-160-250-PPVA-N3 Series, Double Acting

Festo Pneumatic Cylinder, G3/4 Connection Type, Male Thread Piston-Rod End - DSBG-160-250-PPVA-N3

Do you need a device to drive motion using pneumatic energy? Choose this double-acting pneumatic cylinder from Festo. It's designed to turn signals from an actuator into linear motion. When compressed air enters its barrel through the cap-end port, the 160mm-wide piston travels to the other end. This causes the tie rod to extend by up to 250mm, before airflow into the rod-end port makes it retract again. The piston's seals are made from nitrile rubber for resistance to abrasion and to prevent leakage.

Features & Benefits

• Broad operating temperature range between -20°C and +80°C for reliable performance in demanding conditions
• Die-cast aluminium piston is lightweight to limit strain on your system
• High-alloy steel tie rod for resistance to corrosion in damp conditions

Applications

• Manufacturing industry
• Main engine control systems
• Automotive sector

How heavy is this unit?

With its rod retracted, this cylinder weighs 11.751kg. For every 10mm of extension, this weight increases by 97g.

What's the operating pressure range of this unit?

This cylinder has a wide operating pressure range between 0.6 and 10 bar, so it's a versatile option.
