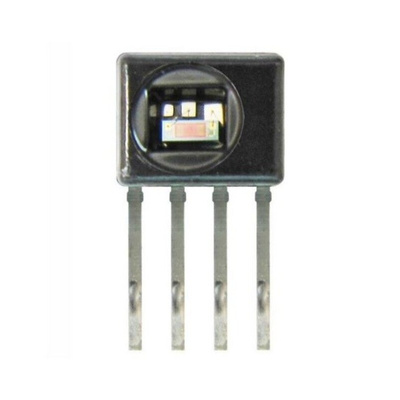

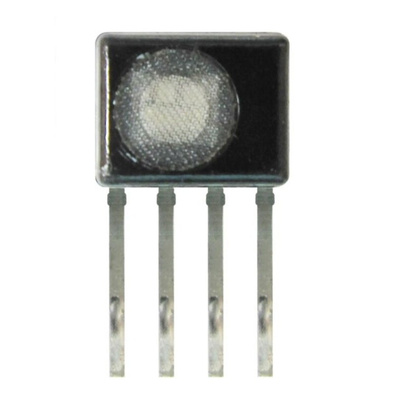

HIH8121-021-001, Honeywell HIH8000 Series Temperature & Humidity Sensor, Digital Output, Through Hole Mount, Serial-I2C, ±2%, 4 Pins

Honeywell HumidIcon™ Digital Humidity/Temperature Sensor- HIH8000 Series

The HIH-8000 series offers two units in one with a digital output-type relative humidity (RH) and temperature sensor combined into one package. The HIH-8000 offer an accuracy of ±2.0 %RH.

Potential Applications:
Industrial:
HVAC/R
Air compressors
Weather stations
Telecom cabinets
Incubators/microenvironments
Medical:
Respiratory therapy
Incubators/microenvironments

Features:
Industry-leading long term stability (1.2 %RH over five years)
Industry-leading reliability (MTTF 9,312,507 HR)
Combined humidity and temperature sensor
Energy efficient
High resolution
True, temperature-compensated digital I²C or SPI output

Honeywell Temperature and Humidity Sensor, 4 Pins, ±2%RH Accuracy- HIH8000 Series - HIH8121-021-001

Accurately measure relative humidity and temperature levels with this digital sensor from Honeywell. It maintains its stability over long periods of time, so there's no need to regularly recalibrate the unit. The thermoset polymer capacitive sensing element is resistant to condensation, dust, dirt and oil, so it helps to prevent contaminants from affecting the unit's readings. This sensor has a sleep mode when not in use to reduce power consumption and maximise battery life for long-lasting performance.

Features & Benefits

• Wide operating temperature range of -40°C to +125°C for use in demanding conditions
• Temperature measurement accuracy of +0.5°C for precise results

Applications

• Air compressors
• Dehumidifiers
• Industrial incubators
• Grain drying systems

Where can I mount this sensor?

This sensor is designed for through-hole mounting onto a PCB for simple and secure installation.

Temperature & Humidity Sensors, Honeywell

Datasheet - HIH8121-021-001

Instruction Sheet - HIH8121-021-001

Product Range Guide - Thermal Products
