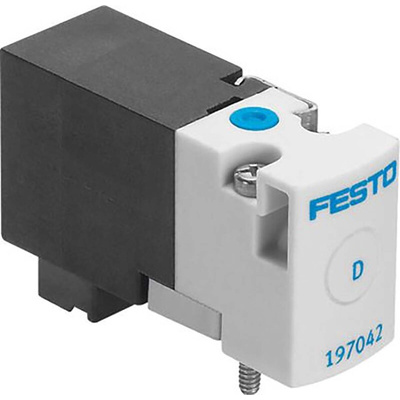

MHA1-M1H-2/2G-0,9-PI, Festo 2/2 Closed, Monostable Pneumatic Solenoid/Pilot-Operated Control Valve - Electrical MHA1 Series, 197044

Festo Monostable Pneumatic Solenoid/Pilot-Operated Control Valve - MHA1 Series - MHA1-M1H-2/2G-0,9-PI

This pilot-operated control valve from Festo is a compact way to pressurise and exhaust pneumatic systems. The 'normally closed' valve uses an internal solenoid coil attached to a plunger to prevent airflow until a current is applied. When this happens, it lifts the plunger inside the valve and allows air into the system. Installation is easy thanks to the simple plug connection at the rear. The valve also features a through-hole mounting style to ensure it stays securely in place.

• Valve function is 2/2 closed, monostable
• Electrical actuation
• Maximum flow rate of 14 L/min
• Minimum operating pressure of -0.9 bar
• Maximum operating pressure of 2 bar
• Operating temperature range of -5°C to +40°C
• Through-hole mounting
• Solenoid power consumption of 1 W

Range Information

• Festo's MHA1 series is a range of miniature valves
• Flow rates are 14 L/min for 2/2 valves and 10 L/min for 3/2 valves
• The miniature valves can be linked together easily thanks to Festo's 'plug and work' design
• The MHA1 range is ideal for use in the electronics and semiconductor industries, medical technology and other applications that require compact, fast-switching valves

The Festo's solenoid valve used manifold block valve for individual and battery mounting and particularly small design, with plug connection at rear. It has piston slide of structure and these highly durable valve are available with 2/2 closed,monostable valve function. Its width size is 10 mm and used operating pressure up to -0.9 - 2 bar with standard nominal flow rate is 14 l/min.

Ambient temperature -5 to 40 °C
Protection class IP65
