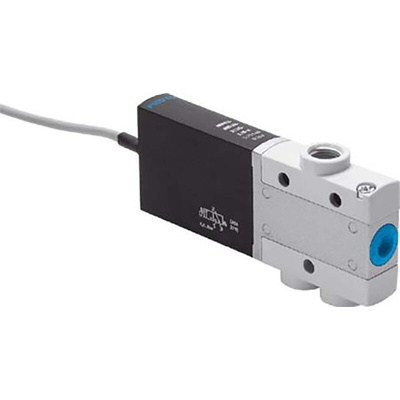

MHE3-MS1H-3/2G-1/8-K, Festo 3/2 Closed, Monostable Pneumatic Solenoid/Pilot-Operated Control Valve - Electrical G 1/8 MHE3 Series, 525149

Festo Closed Monostable Pneumatic Solenoid/Pilot-Operated Control Valve, 3/2 - MHE3-MS1H-3/2G-1/8-K

When you need a responsive control valve for use in your pneumatic system, opt for this durable 3/2 monostable valve from Festo. You can operate it either with a solenoid or an air pilot using electrical actuation. This allows it to work at high speed and offers the ability to control it remotely. The valve is fitted with a protective circuit to reduce the risk of damage, while a manual override function offers greater control if needed. Thanks to simple through-hole mounting, it helps you build a neat and compact system.

• Die-cast zinc housing combines strength with light weight
• IP65 (ingress protection) rated so it's dust-proof and will stand up to jets of water
• Nitrile rubber seals guard against leakage

Applications

• Driving pneumatic actuators
• Pressure release
• Vacuum systems

What's a 3/2 valve?

A 3/2 valve has three ports and two positions. 3/2 valves can be driven pneumatically, mechanically or with an electrically actuated solenoid valve.

What's a monostable valve?

A monostable valve uses a spring to return to its home position when not actuated. 3/2 monostable valves are available in normally open (NO) or normally closed (NC) configurations.

DataSheet - MHE3-MS1H-3/2G-1/8-K

Catalogue - Solenoid valves MH2/MH3/MH4, fast-switching valves
