MN1H-5/2-D-1-C, Festo 5/2 Monostable Pneumatic Solenoid/Pilot-Operated Control Valve - Electrical MN1H Series, 159688

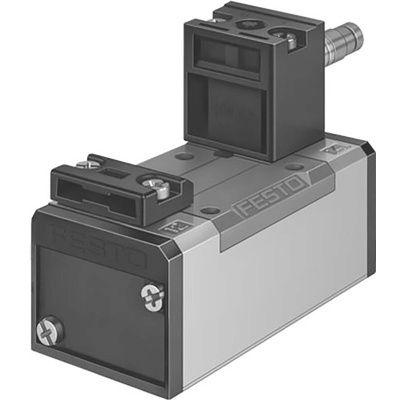

Festo Solenoid Valve, Pilot Operated, Through-Hole Mount - MN1H-5/2-D-1-C

Choose this 5/2 monostable solenoid valve from Festo to support rapid airflow in your pneumatic control system. It's nominal flow rate of 1200L/min makes it compatible with demanding systems. When partnered with a solenoid coil and socket, it uses an internal pilot air supply to adjust its piston position in response to an electrical signal. Thanks to its manual override function, it's highly versatile and boosts the functionality in your industrial process. As the unit's nitrile rubber seals are strong and resistant to oils, fuels and chemicals, this is a safe choice for use in heavy-duty applications.

Features & Benefits

• IP65 rating indicates it's dustproof and resistant to low-pressure water jets from all directions
• Light die-cast aluminium housing limits strain on your system
• Through-hole mount type allows for quick and easy installation

Applications

• Industrial valves
• Air tools
• Cylinder actuation
• Oil and gas industry

Can I use this unit in demanding conditions?

Yes. This solenoid valve has a broad operating temperature range between -5°C and +50°C, so it functions in harsh conditions.

What's the operating pressure range of this unit?

This valve has a wide operating pressure range between 2 and 10 bar for versatility.

DataSheet - MN1H-5/2-D-1-C

Catalogue - Standards-Based Valves
