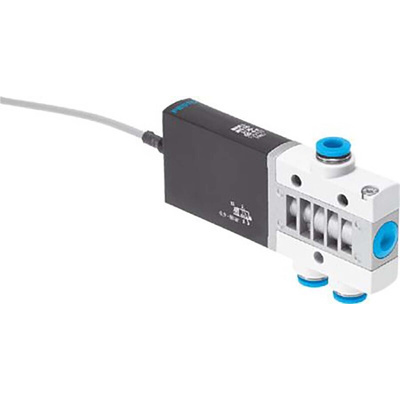

MHE3-M1H-3/2G-QS-6-K, Festo 3/2 Closed, Monostable Pneumatic Solenoid/Pilot-Operated Control Valve - Electrical MHE3 Series, 525152

Festo Pneumatic Solenoid/Pilot-Operated Control Valve, 24V DC Supply Voltage, 0.9 to 1 Bar Operating Pressure - MHE3-M1H-3/2G-QS-6-K

Choose this pneumatic solenoid/pilot-operated control valve from Festo to adjust the fluid direction in your system. It's a 3/2-way monostable unit that uses compressed fluids to open or close in response to a magnetic field. This field is produced when the unit's built-in coil is energised. A 2.5m cable connects to your electrical source and has a PUR sheath for protection from oil and chemical damage. As indicated by its high nominal flow rate of 200L/min, this control valve is suitable for use in heavy-duty applications.

Features & Benefits

• Can be assembled in any position, to suit your application
• Zinc die-cast housing for durability
• IP65 rating indicates it's dust-proof and protected against water projected from a nozzle
• Light weight of 120g so it won't strain your system

Applications

• HVAC systems
• Irrigation networks
• Car washes
• Swimming pool drainage
• Medical equipment

What switching time does this control valve deliver?

The responsive unit has a rapid switch-on time of 8.3ms, while switching off takes just 4.5ms.

Can I use this valve in demanding conditions?

Yes, the unit has a wide operating temperature range between -5°C and +60°C, for reliability in industrial settings.

DataSheet - MHE3-M1H-3/2G-QS-6-K

Brochure - Valves And Valve Terminals

Catalogue - Solenoid Valves
